1-Person Webb Cubicle, 6' x 6', 67" Tall Panels
1-Person Webb Cubicle, 6' x 6', 67" Tall Panels

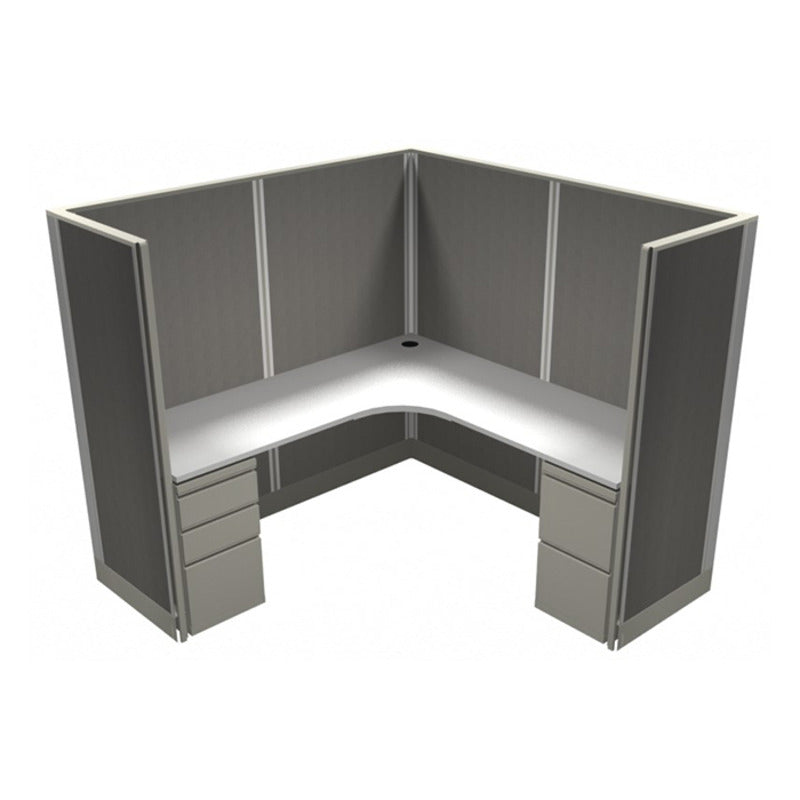

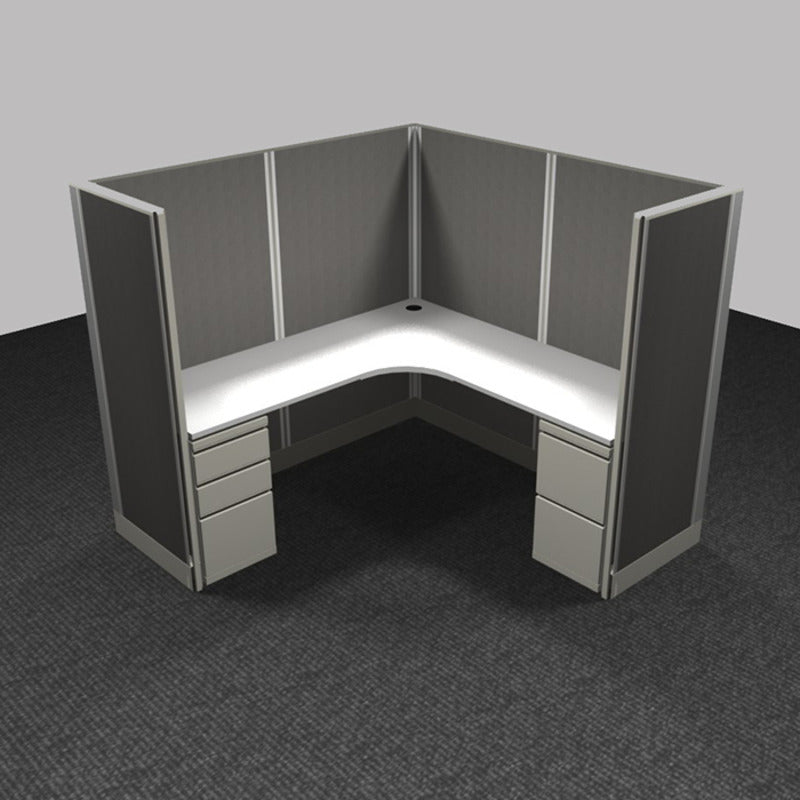

A single cubicle with tall 67" walls and a corner desk. Full privacy for focused work and phone calls.
Everything is already figured out for you. This is an official N9NE Webb pre-engineered kit: every panel, connector, end cap, desk top, bracket and pedestal is counted and included, so the pieces fit together exactly like the pictures. Just pick your desk color and whether you want power.
At a glance
| People | 1 |
|---|---|
| Each station | 6' x 6' |
| Panel height | 67" |
| Panels | 6 panels, 2" thick, neutral gray fabric with silver trim |
| Desk tops | 3 laminate desk pieces, 1" thick |
| Storage | 1 box/box/file, 1 file/file support pedestals |
| Power | Choose No Power or With Power above |
| Desk finish | Aspen, Silver Birch, Newport Gray, Modern Walnut |
What's in the box (No Power version)
| Qty | Part | Model |
|---|---|---|
| 2 |
Panel, 24"W x 67"H Fabric wall section. Includes base trim covers. |
P6724NONPOWER |
| 4 |
Panel, 36"W x 67"H Fabric wall section. Includes base trim covers. |
P6736NONPOWER |
| 3 |
Corner connector (L), 67"H Joins two panels at a 90 degree corner |
PCNT672WY |
| 2 |
Straight connector, 67"H Joins two panels in a straight line |
PCNT67STR |
| 2 |
End cap, 67"H Finishes the open end of a panel wall |
KTPCNT67CAP |
| 2 |
Desk top, 36"W x 24"D Straight desk surface |
PLT2436 |
| 1 |
Corner desk top, 36" x 36" Square desk piece that fills the corner |
PLT3636 |
| 1 |
Corner desk brackets (pair) Support the desk top where two panel walls meet in a corner |
PWSCNRBRKT |
| 1 |
Desk bracket, left Hooks into the panel slots and holds up the left end of a desk top |
PWSCNTL-L |
| 1 |
Desk bracket, right Hooks into the panel slots and holds up the right end of a desk top |
PWSCNTL-R |
| 2 |
Shared desk bracket Hooks into a panel and holds up two desk tops where they meet |
PWSCNTLSRD |
| 1 |
Support pedestal, box/box/file Steel 3-drawer pedestal that also holds up the desk |
PPDBBF |
| 1 |
Support pedestal, file/file Steel 2-drawer file pedestal that also holds up the desk |
PPDFF |

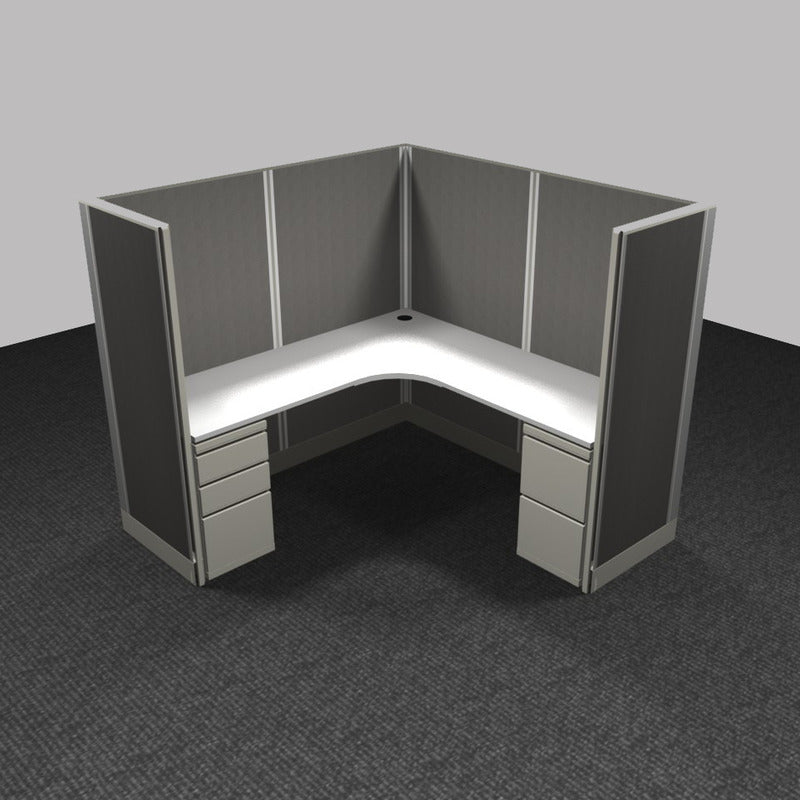

What the "With Power" version changes
Some walls are swapped for power panels and the electrical parts are added. Power comes in through a base feed at the floor.
- +2 Panel, 36"W x 67"H, with built-in power (P6736POWER)
- +1 Base power feed (PELBSFD-L)
- +1 Outlet, circuit 1 (PELDPLX1)
- +1 Outlet, circuit 2 (PELDPLX2)
- +1 Outlet, circuit 3 (PELDPLX3)
- +1 Outlet, circuit 4 (dedicated) (PELDPX4ISO)
- +3 Outlet cover (PELOUTCVR)
- +1 Power jumper, 19" (SP-JF-03-1)
- −2 Panel, 36"W x 67"H (P6736NONPOWER)
Important: a licensed electrician must make the final connection to your building power. Everything after that just plugs and clicks together.
How it goes together

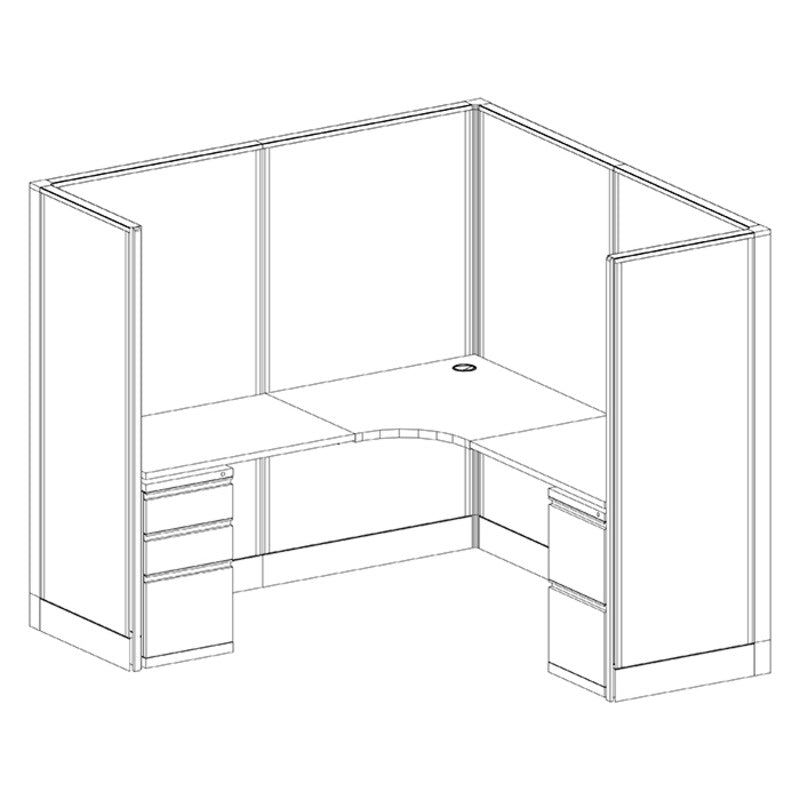

- Sort the boxes. Group panels, connectors, end caps, desk tops, brackets and pedestals. Use the layout picture above as your map.
- Stand up the first corner. Start where walls meet: set two panels on a corner (L), T or cross connector and tighten the rod and block.
- Add the rest of the walls. Work outward. Use a straight connector wherever two panels line up end to end.
- Cap the open ends. Put an end cap on every wall end that doesn't touch another panel.
- Hang the desk brackets. Hook the brackets into the slots on the panels at desk height and add the corner brackets.
- Set the desks and pedestals. Lay the desk tops on the brackets and pedestals, line them up and screw them down.
- Power (powered version). Snap the jumpers between power panels, click the outlets into place and have an electrician connect the feed.
Want the factory instructions? Download the N9NE Webb Panel Guide (PDF).
New from N9NE Furniture Group, sold by NWC Office Furniture, an authorized N9NE dealer for 20 years. Ships by freight to Oregon and Washington. Need a different size, more stations or installation? Send us your floor plan for a free layout and quote.
