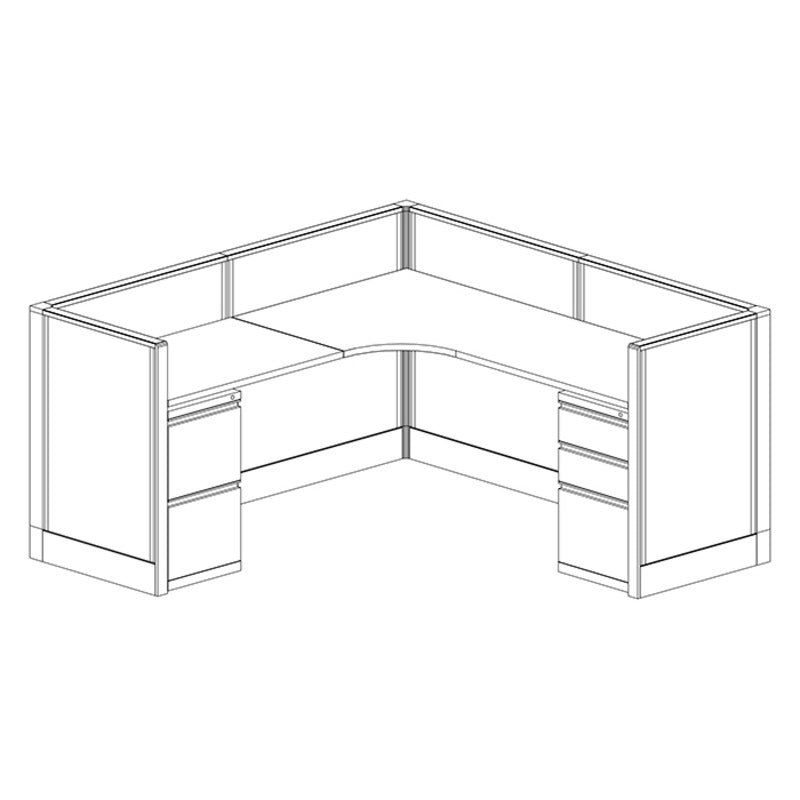

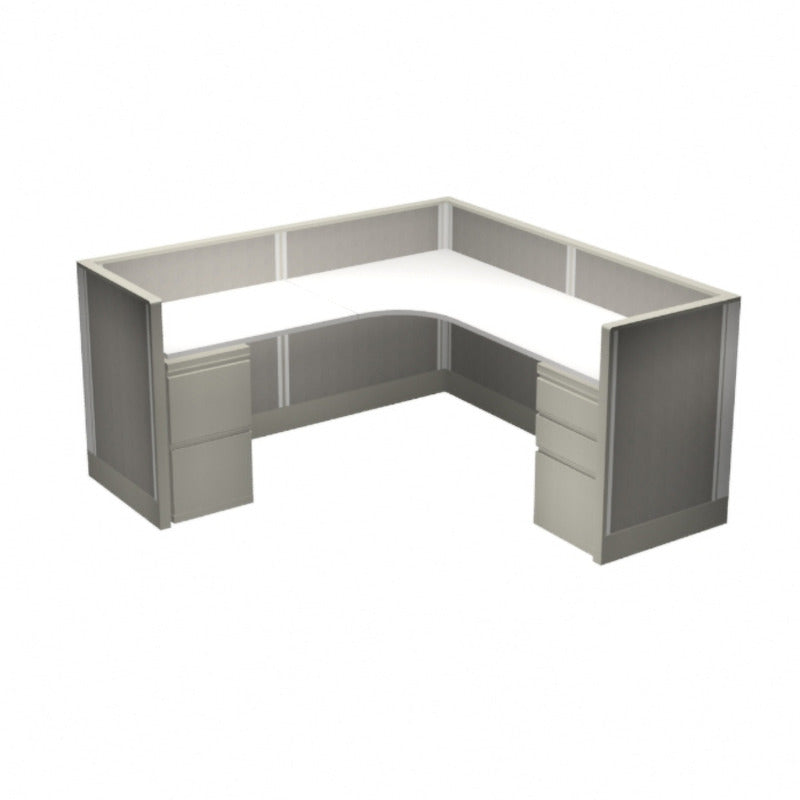

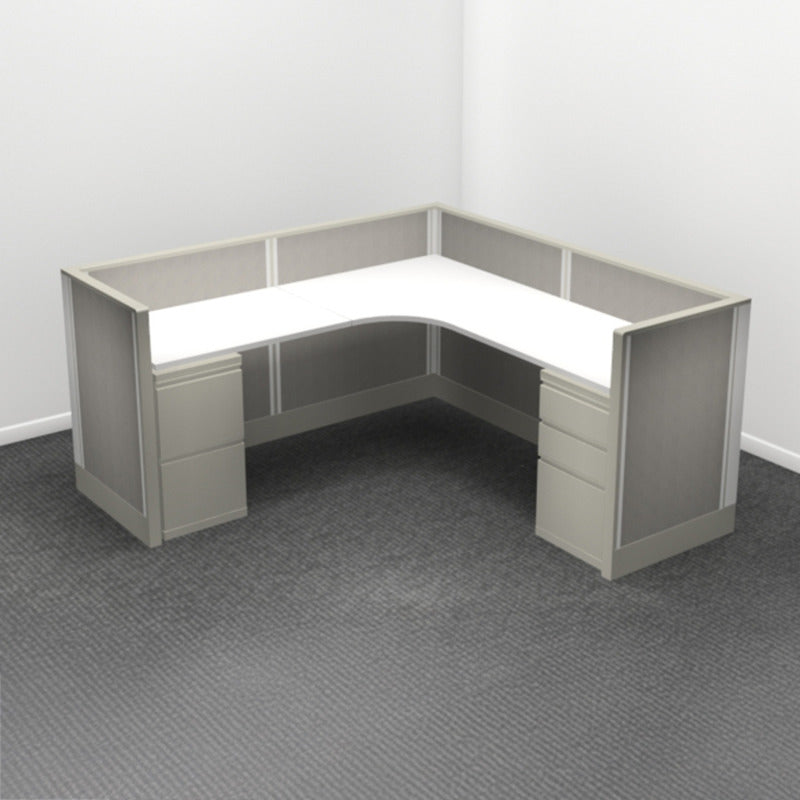

1-Person Webb Cubicle, 6' x 6', 39" Low Panels layout

1-Person Webb Cubicle, 6' x 6', 39" Low Panels

Aspen
$2,658.00
$2,658.00 $4,089.00
Skip to product information
1-Person Webb Cubicle, 6' x 6', 39" Low Panels layout
  • 1-Person Webb Cubicle, 6' x 6', 39" Low Panels layout
  • 1-Person Webb Cubicle, 6' x 6', 39" Low Panels layout
  • 1-Person Webb Cubicle, 6' x 6', 39" Low Panels layout
  • 1-Person Webb Cubicle, 6' x 6', 39" Low Panels layout
  • 1-Person Webb Cubicle, 6' x 6', 39" Low Panels layout
  • 1-Person Webb Cubicle, 6' x 6', 39" Low Panels layout
1-Person Webb Cubicle, 6' x 6', 39" Low Panels

1-Person Webb Cubicle, 6' x 6', 39" Low Panels

$2,658.00
$2,658.00 $4,089.00
Desk Finish

A single L-shaped workstation with low 39" walls. Low walls keep the room open and easy to talk across while still marking off each person's space.

Everything is already figured out for you. This is an official N9NE Webb pre-engineered kit: every panel, connector, end cap, desk top, bracket and pedestal is counted and included, so the pieces fit together exactly like the pictures. Just pick your desk color.

At a glance

People 1
Each station 6' x 6'
Panel height 39"
Panels 6 panels, 2" thick, neutral gray fabric with silver trim
Desk tops 2 laminate desk pieces, 1" thick
Storage 1 box/box/file, 1 file/file support pedestals
Power No power (non-powered panels)
Desk finish Aspen, Silver Birch, Newport Gray, Modern Walnut

What's in the box

Qty Part Model
2 Panel, 24"W x 39"H
Fabric wall section. Includes base trim covers. 		P3924NONPOWER
4 Panel, 36"W x 39"H
Fabric wall section. Includes base trim covers. 		P3936NONPOWER
3 Corner connector (L), 39"H
Joins two panels at a 90 degree corner 		PCNT392WY
2 Straight connector, 39"H
Joins two panels in a straight line 		PCNT39STR
2 End cap, 39"H
Finishes the open end of a panel wall 		KTPCNT39CAP
1 Desk top, 36"W x 24"D
Straight desk surface 		PLT2436
1 L-shaped corner desk top, 72" x 24"-36" (left)
One-piece desk that wraps the corner 		PLT723624L
2 Corner desk brackets (pair)
Support the desk top where two panel walls meet in a corner 		PWSCNRBRKT
2 Shared desk bracket
Hooks into a panel and holds up two desk tops where they meet 		PWSCNTLSRD
1 Support pedestal, box/box/file
Steel 3-drawer pedestal that also holds up the desk 		PPDBBF
1 Support pedestal, file/file
Steel 2-drawer file pedestal that also holds up the desk 		PPDFF

How it goes together

  1. Sort the boxes. Group panels, connectors, end caps, desk tops, brackets and pedestals. Use the layout picture above as your map.
  2. Stand up the first corner. Start where walls meet: set two panels on a corner (L), T or cross connector and tighten the rod and block.
  3. Add the rest of the walls. Work outward. Use a straight connector wherever two panels line up end to end.
  4. Cap the open ends. Put an end cap on every wall end that doesn't touch another panel.
  5. Hang the desk brackets. Hook the brackets into the slots on the panels at desk height and add the corner brackets.
  6. Set the desks and pedestals. Lay the desk tops on the brackets and pedestals, line them up and screw them down.

Want the factory instructions? Download the N9NE Webb Panel Guide (PDF).

New from N9NE Furniture Group, sold by NWC Office Furniture, an authorized N9NE dealer for 20 years. Ships by freight to Oregon and Washington. Need a different size, more stations or installation? Send us your floor plan for a free layout and quote.
